EM101N Two Channel

Part Number: 301180889
$ 549.95 USD

The Launch EM 101N Scopebox is a compact, 2‑channel wireless oscilloscope that pairs with the X‑431 diagnostic tablet for easy electrical diagnostics. It helps technicians quickly identify issues in sensors, actuators, ignition systems, circuits, and CAN/LIN buses. Its portable design and intuitive interface make troubleshooting faster and more efficient.

The Launch EM 101N Scopebox is a compact, 2‑channel wireless oscilloscope that pairs with the X‑431 diagnostic tablet for easy electrical diagnostics. It helps technicians quickly identify issues in sensors, actuators, ignition systems, circuits, and CAN/LIN buses. Its portable design and intuitive interface make troubleshooting faster and more efficient.

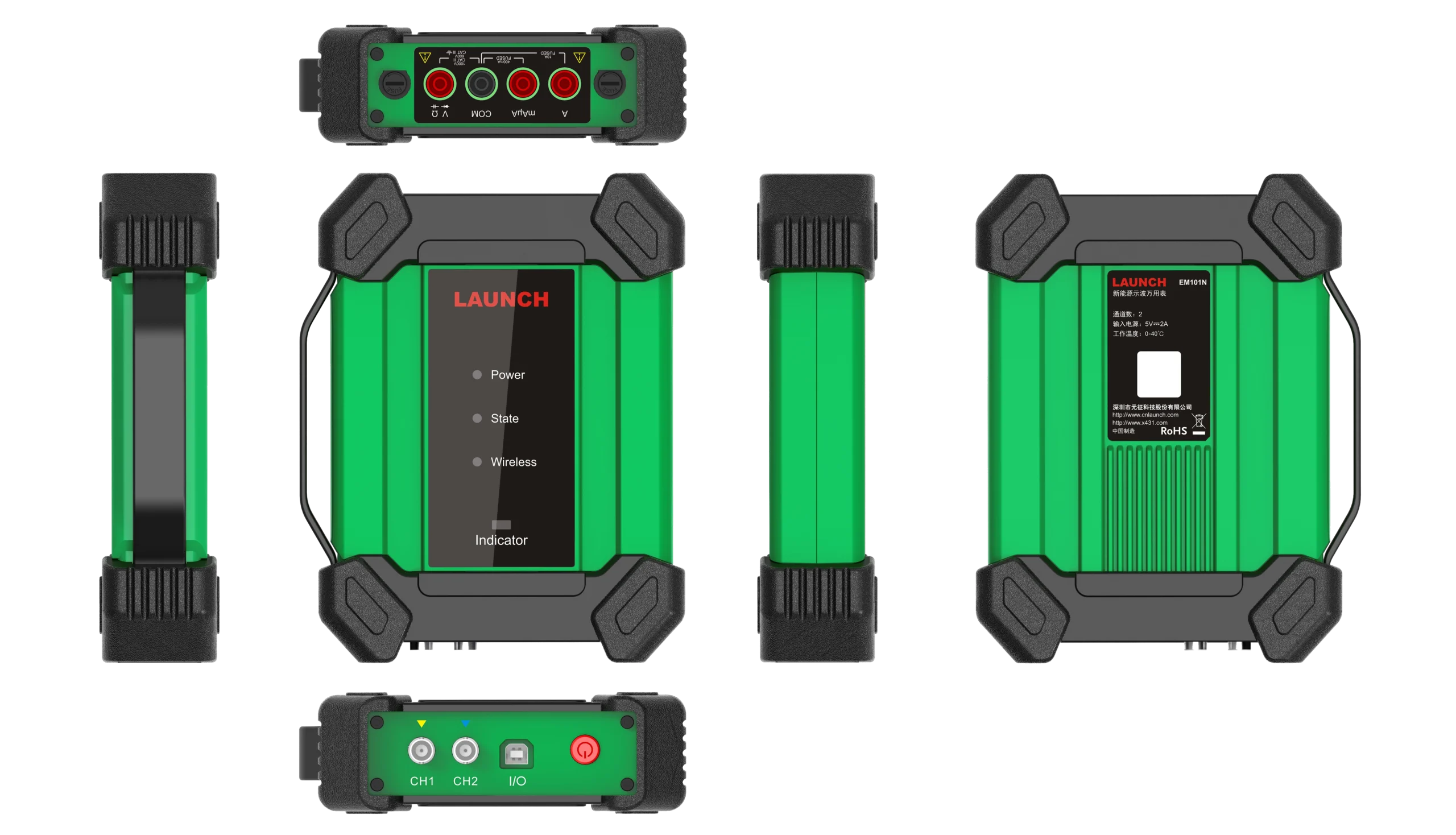

EM101Nfront
EM101N

Are you interested in
an offer or more information?

Write directly to our field support team or find your nearest distributor.

contact us
features

features

specs

specs

inclusions

inclusions

compatibility

compatibility

Downloads

Downloads

Vehicle coverage

Vehicle coverage

The X-431 Throttle v is compatible with a wide range of vehicle makes and models, covering domestic, Asian and European brands.

13.6 inch screen

13.6 inch screen

The X-431 Throttle V’s 13.6 inch screen allows for even better visibility, user-friendliness, and the freedom to compare values and diagnose complex issues more efficiently.

adas compatibility

adas compatibility

The X-431 Throttle V has an integrated ADAS software which offers the possibility to calibrate chassis and assistance systems on the vehicle.

software updates

software updates

Every customer is free to decide whether and when the next update should be carried out.

waterproof

waterproof

The X-431 Throttle V is IP65 waterproof and dustproof which gives the freedom to work in real-world conditions without worrying about damage.

hd diagnosis

hd diagnosis (Optional)

If required, the X-431 Throttle V can be extended with a truck software. For this purpose, the… is required, which can also be purchased separately

specs
Version

Version 7.2

Processor

8 Core /2.0GHz

Ram

4GB

Slot

Card slot up to 64G

Size

10.1 Inches,
1920*1200, IPS

Dimension

2560 x 1600

Battery

9360mAh

(2.4 + 5GHz),

(2.4 + 5GHz)

package contents

  • Throttle V Diagnostic Tablet
  • SmartLink V3.0 Diagnostic Connector
  • OBDII Connector
  • Diagnostic Cable (DB15 to HD15)
  • Gigabit Network Cable (50ft/15m)
  • USB Cable (Type A to B)
  • USB Cable (Type A to Type C)
  • Power Adapter (US)
  • EU Power Cable
  • AU Power Cable
  • UK Power Cable
  • Mini HDMI Cable
  • Activation Code
  • Quick Start Guide

product compatibility

adas

X-431 ADAS PRO PLUS

X-431 ADAS MOBILE PLUS

X-431 ADAS HD

RADAR 3-IN-1

HEAVY DUTY SOLUTIONS

HD ADD-ON MODULE

battery performance

bST360

WHEEL SERVICE TOOLS

X-613 ADVANCED WHEEL ALIGNER

SPECIALITY TOOLS

X-PROG 3

VSP600

VSP828

02-24 CHANNEL SCOPEBOX

S2-2 SENSORBOX

EM101N

TREADMASTER

POWERSPORT CONNECTORS & SOFTWARE

ev

eG100

EV & BATTERY PACK DIAGNOSIS ADD-ON KIT

download user manual download software update

features

features

specs

specs

inclusions

inclusions

Compatibility with X-431 Tablets

X-431 Integration

Works seamlessly with Launch tablets.

Frequency

10 MHz Bandwidth

Capture high-frequency electrical signals.

Service Functions

Electrical Diagnostics

Test sensors, actuators, circuits efficiently.

Vehicle Protocols

CAN/LIN Bus Support

Analyze network communications quickly.

specs
AC Current

AC Current

Auto range, ±10A (use external sensor for higher range)

AC Voltage

AC Voltage

Auto Range, Measurement Range ±600V

Channels

Channels

2

DC Current

DC Current

Auto range, ±10A (use external sensor for higher range)

DC Voltage

DC Voltage

Auto Range, Measurement Range ±600V

Frequency

Frequency

10MHz

Input Impedence

Input Impedence

1MΩ±2%, 15pF±5pF parallel

Input Voltages

Input Voltages

40V peak value (DC + AC peak value)

Max Sample Rate

Max Sample Rate

50MHz/s

Resistance

Resistance

Auo Range, Measurement Range: 0Ω~60MΩ

Sample Bit

Sample Bit

8 bit

Trigger Type

Trigger Type

Edge

Vertical Scale

Vertical Scale

10mV/div~10V/div

Diode

Diode

0V-2.0V

Diode

Diode

0V-2.0V

package contents

  • EM101N Module
  • Multimeter Test Probes
  • BNC to 4mm Test Leads
  • Crocodile Clips
  • Probing Pin Set
  • USB Type A to Type B Male Cable
  • Power Adapter
