X-PROG 3

Part Number: 706020007
$ 1,095.99 USD

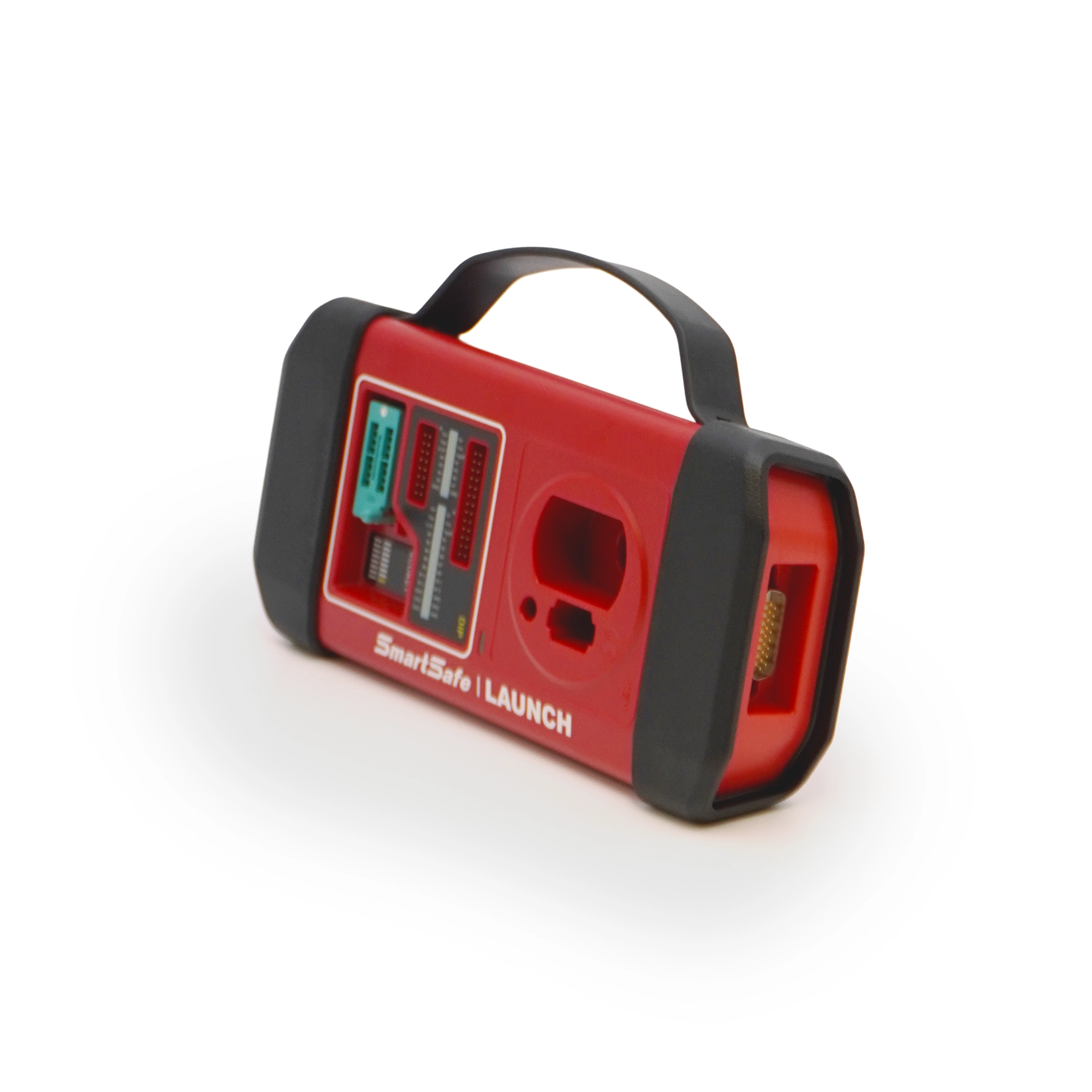

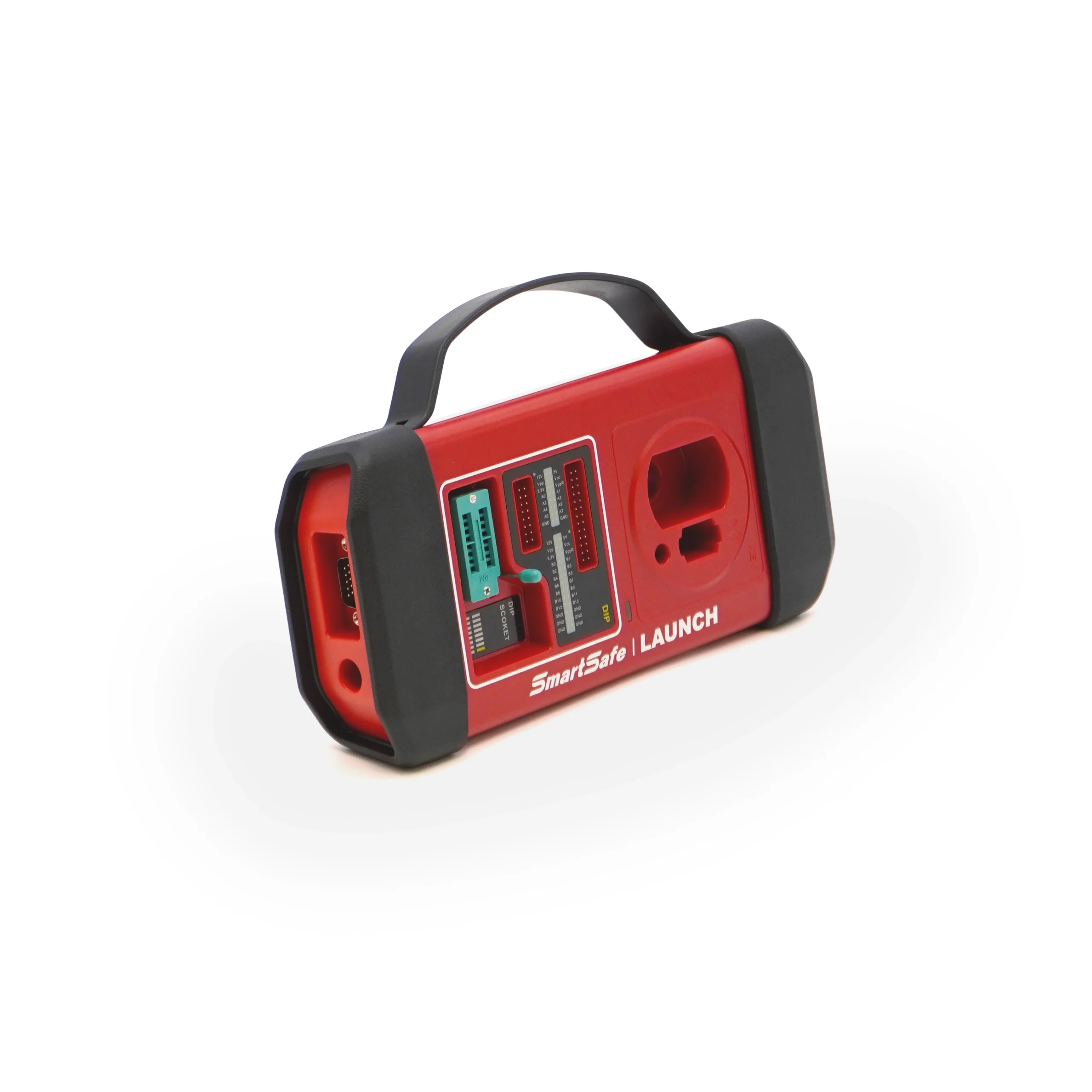

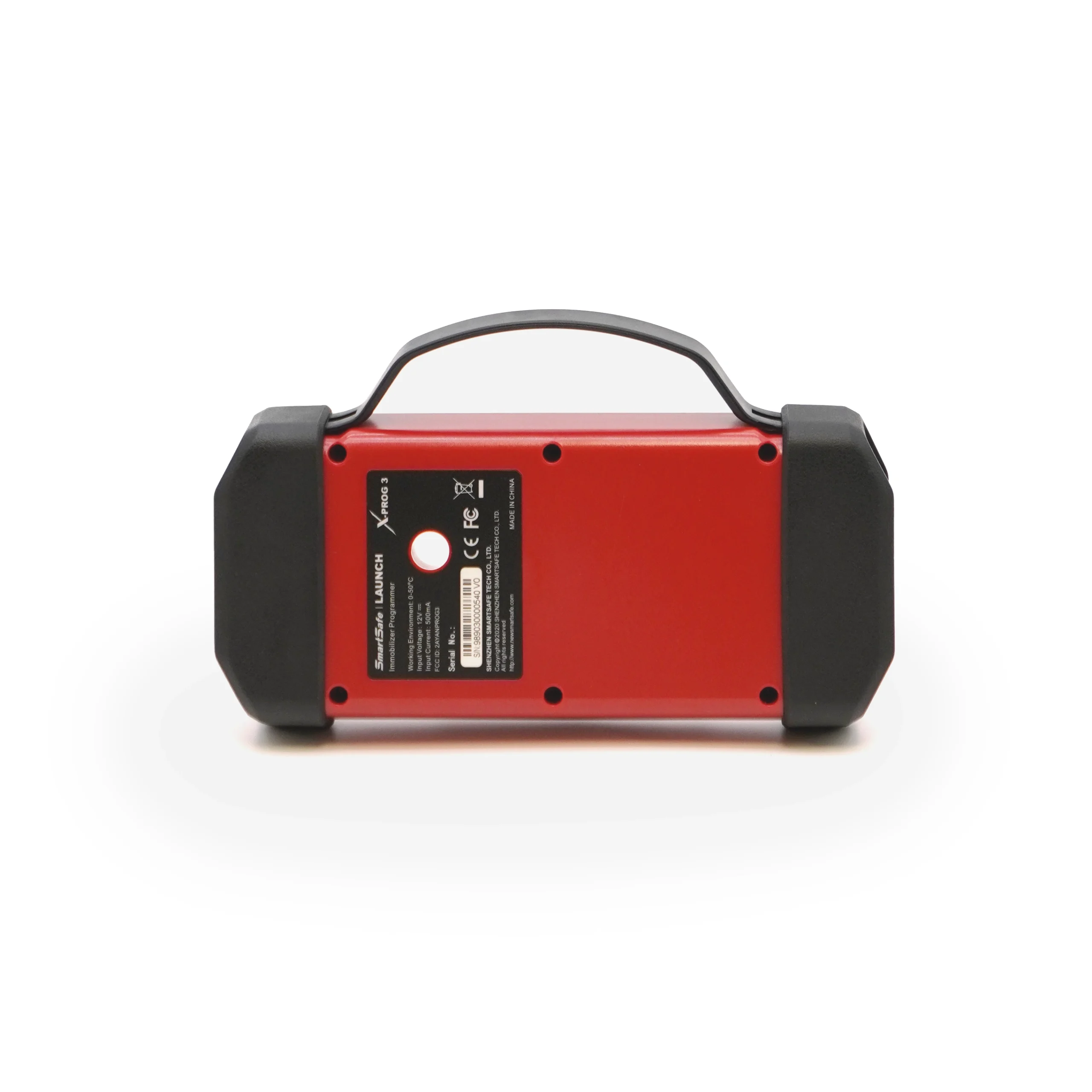

The Launch X-Prog 3 is an advanced all-in-one immobilizer and key programmer. It integrates with multiple function modules and is compatible with X-431 diagnostic scanners without the need to bind. It can retrieve, read, erase, and write most ECUs without the need to disassemble the ECU hardware. Works with Euro, Asian, and Domestic brands. Pair with the X-PROG 3 PC Adaptor for ECU and TCU cloning via your PC.

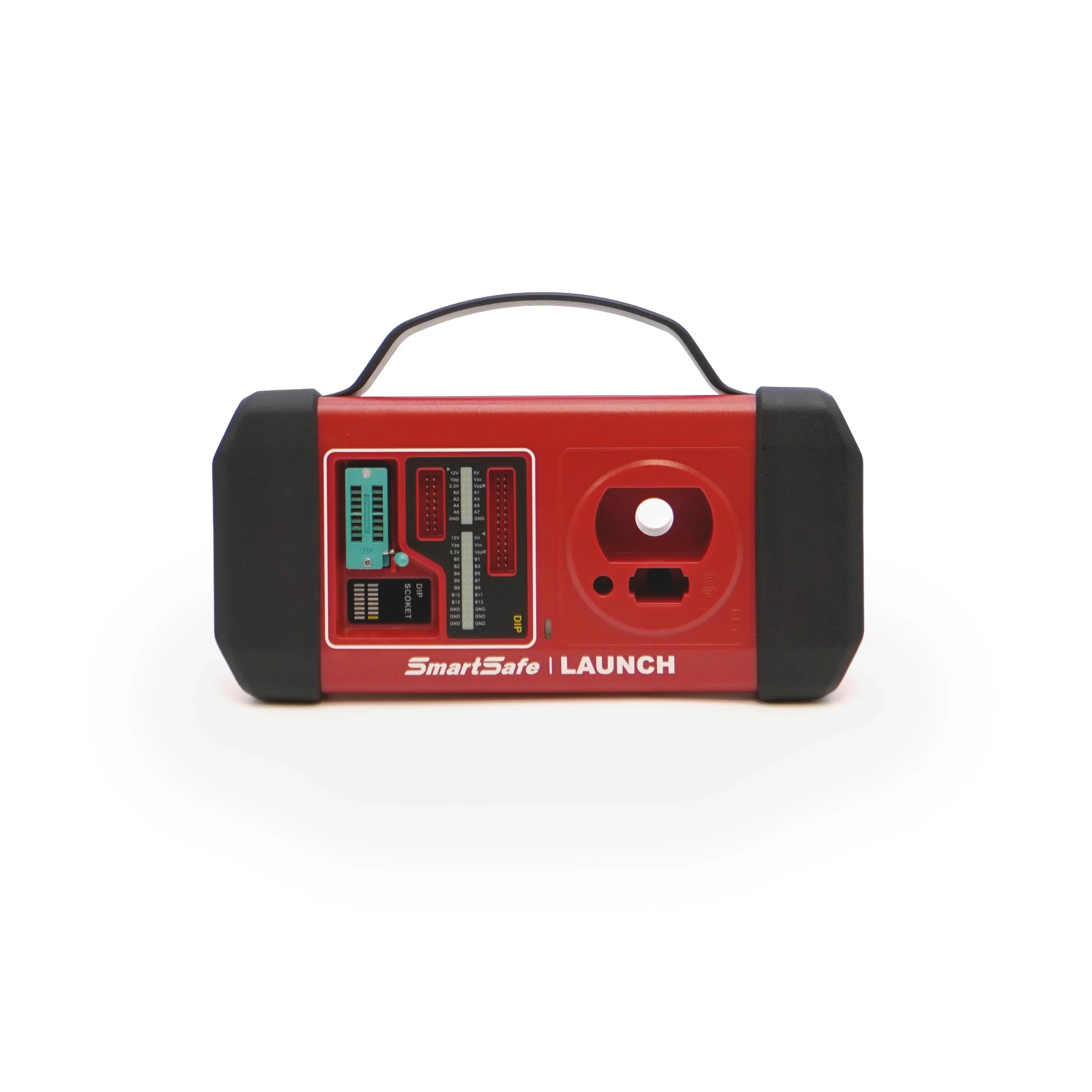

  • Vehicle Key Slot: place car key for RF detection
  • DB26: connect to each anti-theft cable
  • Key IC Hole: place the key chip to perform key matching
  • Status Indicator: power supply indicator lamp
  • EEPROM Slot: insert EEPROM board
  • Locker: tighten loose EEPROM boards
  • DC 12V: connect to DC12 power supply
  • DB15: connect with the vehicle’s DLC
  • DIY Slot: connect the anti-theft ECU pin through the cable to read and write data

The Launch X-Prog 3 is an advanced all-in-one immobilizer and key programmer. It integrates with multiple function modules and is compatible with X-431 diagnostic scanners without the need to bind. It can retrieve, read, erase, and write most ECUs without the need to disassemble the ECU hardware. Works with Euro, Asian, and Domestic brands. Pair […]

X-PROG 3
X-PROG 3 - Image 2
X-PROG 3 - Image 3
X-PROG 3 - Image 4
X-PROG 3 - Image 5

Are you interested in
an offer or more information?

Write directly to our field support team or find your nearest distributor.

contact us
features

features

specs

specs

inclusions

inclusions

compatibility

compatibility

Downloads

Downloads

Vehicle coverage

Vehicle coverage

The X-431 Throttle v is compatible with a wide range of vehicle makes and models, covering domestic, Asian and European brands.

13.6 inch screen

13.6 inch screen

The X-431 Throttle V’s 13.6 inch screen allows for even better visibility, user-friendliness, and the freedom to compare values and diagnose complex issues more efficiently.

adas compatibility

adas compatibility

The X-431 Throttle V has an integrated ADAS software which offers the possibility to calibrate chassis and assistance systems on the vehicle.

software updates

software updates

Every customer is free to decide whether and when the next update should be carried out.

waterproof

waterproof

The X-431 Throttle V is IP65 waterproof and dustproof which gives the freedom to work in real-world conditions without worrying about damage.

hd diagnosis

hd diagnosis (Optional)

If required, the X-431 Throttle V can be extended with a truck software. For this purpose, the… is required, which can also be purchased separately

specs
Version

Version 7.2

Processor

8 Core /2.0GHz

Ram

4GB

Slot

Card slot up to 64G

Size

10.1 Inches,
1920*1200, IPS

Dimension

2560 x 1600

Battery

9360mAh

(2.4 + 5GHz),

(2.4 + 5GHz)

package contents

  • Throttle V Diagnostic Tablet
  • SmartLink V3.0 Diagnostic Connector
  • OBDII Connector
  • Diagnostic Cable (DB15 to HD15)
  • Gigabit Network Cable (50ft/15m)
  • USB Cable (Type A to B)
  • USB Cable (Type A to Type C)
  • Power Adapter (US)
  • EU Power Cable
  • AU Power Cable
  • UK Power Cable
  • Mini HDMI Cable
  • Activation Code
  • Quick Start Guide

product compatibility

adas

X-431 ADAS PRO PLUS

X-431 ADAS MOBILE PLUS

X-431 ADAS HD

RADAR 3-IN-1

HEAVY DUTY SOLUTIONS

HD ADD-ON MODULE

battery performance

bST360

WHEEL SERVICE TOOLS

X-613 ADVANCED WHEEL ALIGNER

SPECIALITY TOOLS

X-PROG 3

VSP600

VSP828

02-24 CHANNEL SCOPEBOX

S2-2 SENSORBOX

EM101N

TREADMASTER

POWERSPORT CONNECTORS & SOFTWARE

ev

eG100

EV & BATTERY PACK DIAGNOSIS ADD-ON KIT

download user manual download software update

features

features

specs

specs

inclusions

inclusions

Brand Coverage

Broad Vehicle Support

Works with Euro, Asian, and Domestic brands.

Compatibility with X-431 Tablets

Works with X-431 Tablets

Seamlessly plugs into your Launch diagnostic tool.

Service Functions

Immobilizer & Key Programming

Add new or replacement keys easily.

EEPROM & ECU Read/Write

EEPROM & ECU Read/Write

Clone or restore data without disassembly.

Advanced Chip-Level Access

Advanced Chip-Level Access

Read/write CAS4+/FEM chips, engine ISN codes.

Immobilizer Password Functions

Immobilizer Password Functions

Reads passwords and replaces components swiftly.

ECU Cloning Capability

ECU Cloning Capability

Replace or copy control modules quickly.

specs
Input Power

Input Power

12VDC

Maximum Output Current

Maximum Output Current

500mA

Power Consumption

Power Consumption

5W

Storage Temperature

Storage Temperature

-4F- 158F

Working Temperature

Working Temperature

32F- 122F

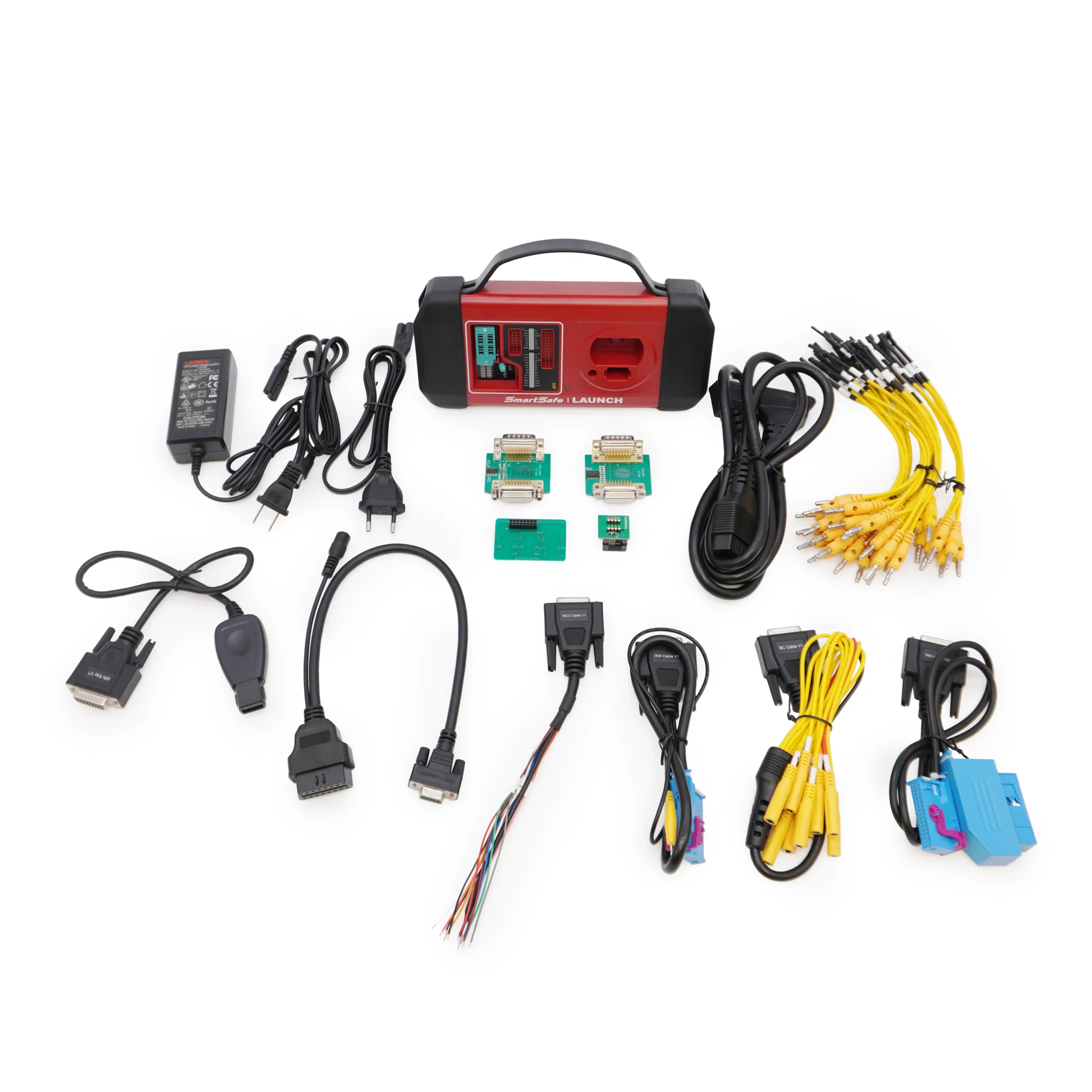

package contents

  • X-PROG 3 Main Progamming Unit
  • 12VDC 3A Power Adapter
  • Main Diagnostic Cable (OBD 16 PIN to D-Sub HD15)
  • INS Cable 2 – Gen 4 Data Acquistion Cable (Dashboard Removed)
  • INS Cable 1 – Gen 4 EEPROM Data Acquition Cable (w/o Dashboard Removed)
  • BC Cable V1 – BENCH Mode Cable
  • MCU Converter V1 (PCBA)
  • MCU Converter V2 (PCBA)
  • EEPROM 2X4 SOP8 Chip Adapter
  • EEPROM Converter (PCBA) (Solder)
  • MN Key V1 – Mercedes Benz Infrared Simulation Key
  • MCU Cable V1 – MCU Cable with Open Leads
  • Banana Plug Test Leads for BENCH Mode Cable
  • User Manual
