TSAP-3

Part Number: 302020529
$ 479.95 USD

The TSAP-3 is a reliable TPMS tool for DIYers and entry-level technicians. It activates and reads all major OEM and aftermarket 315/433Mhz sensors while guiding vehicle-specific relearn procedures with ease. With the added ability to test key fob signal strength and battery status, the TSAP-3 delivers all the essentials for dependable tire service.

The TSAP-3 is a reliable TPMS tool for DIYers and entry-level technicians. It activates and reads all major OEM and aftermarket 315/433Mhz sensors while guiding vehicle-specific relearn procedures with ease. With the added ability to test key fob signal strength and battery status, the TSAP-3 delivers all the essentials for dependable tire service.

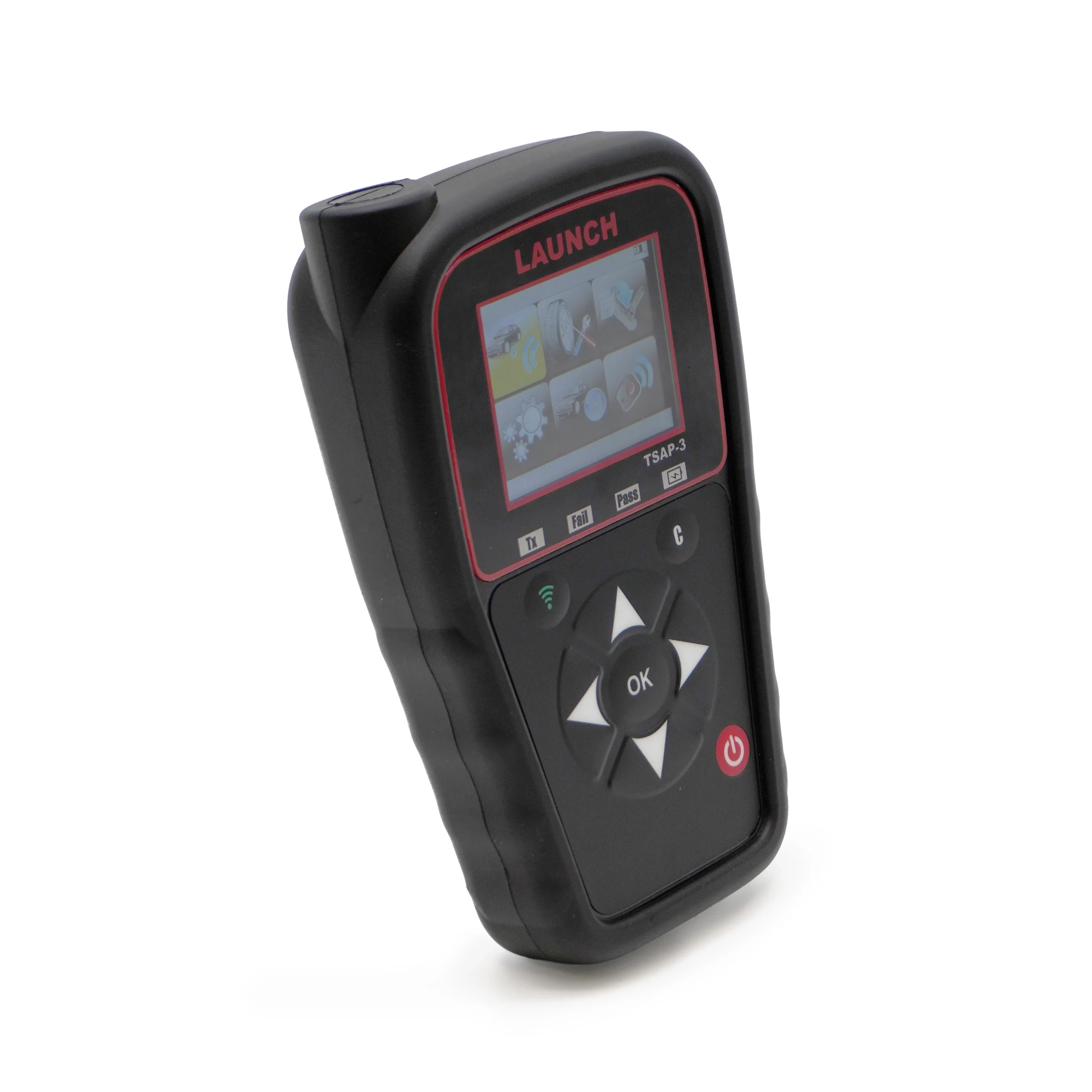

TSAP-3

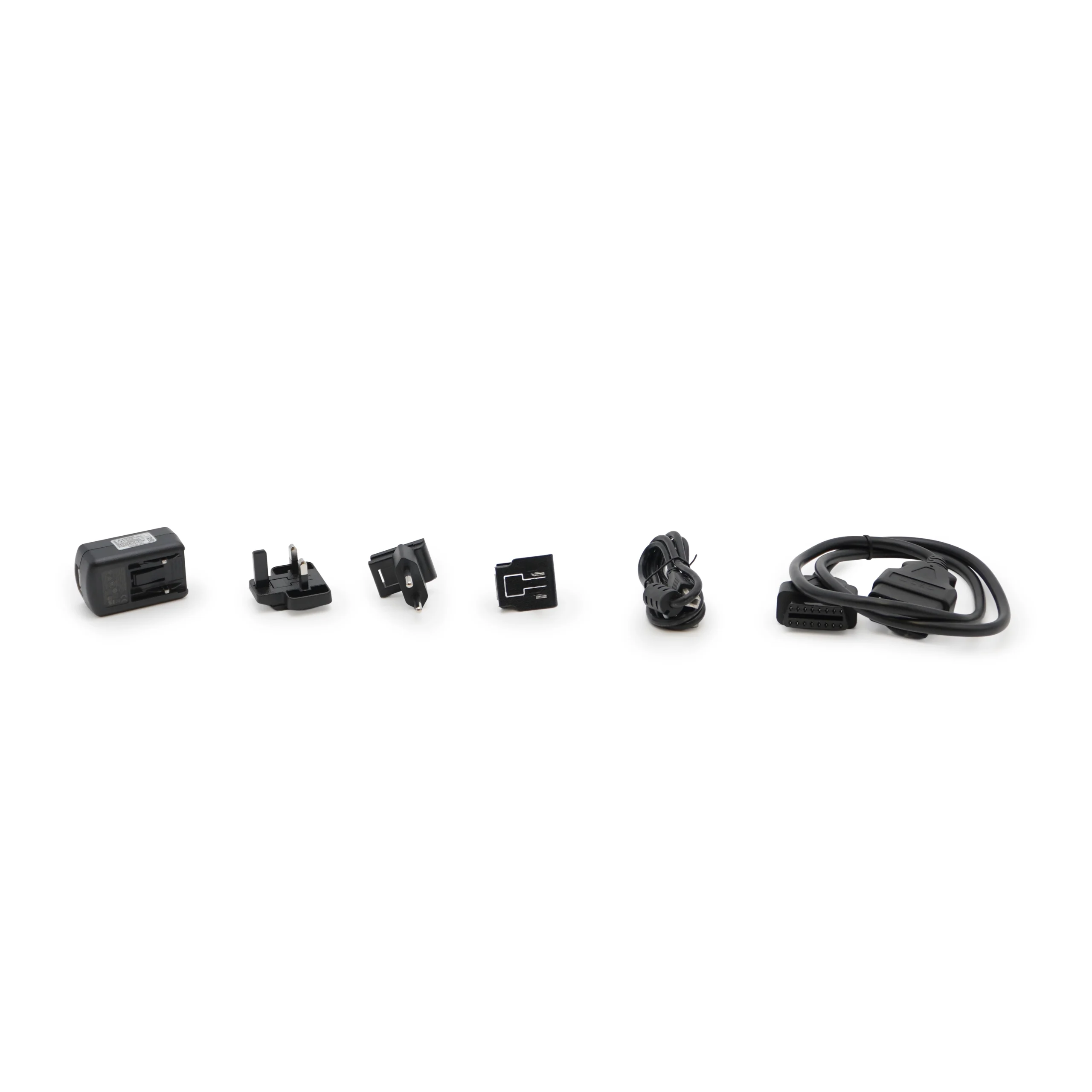

TSAP-3 - Image 2

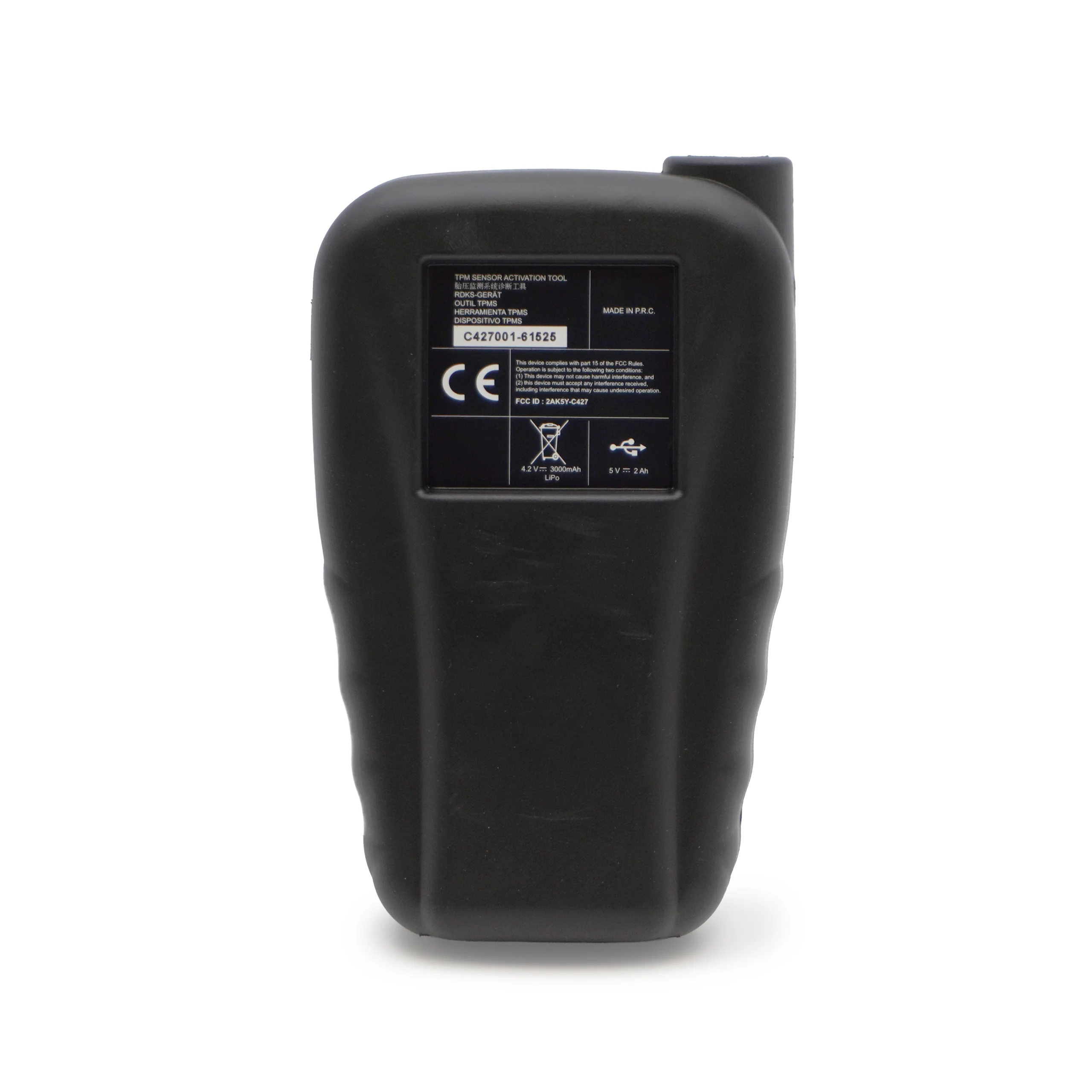

TSAP-3 - Image 3

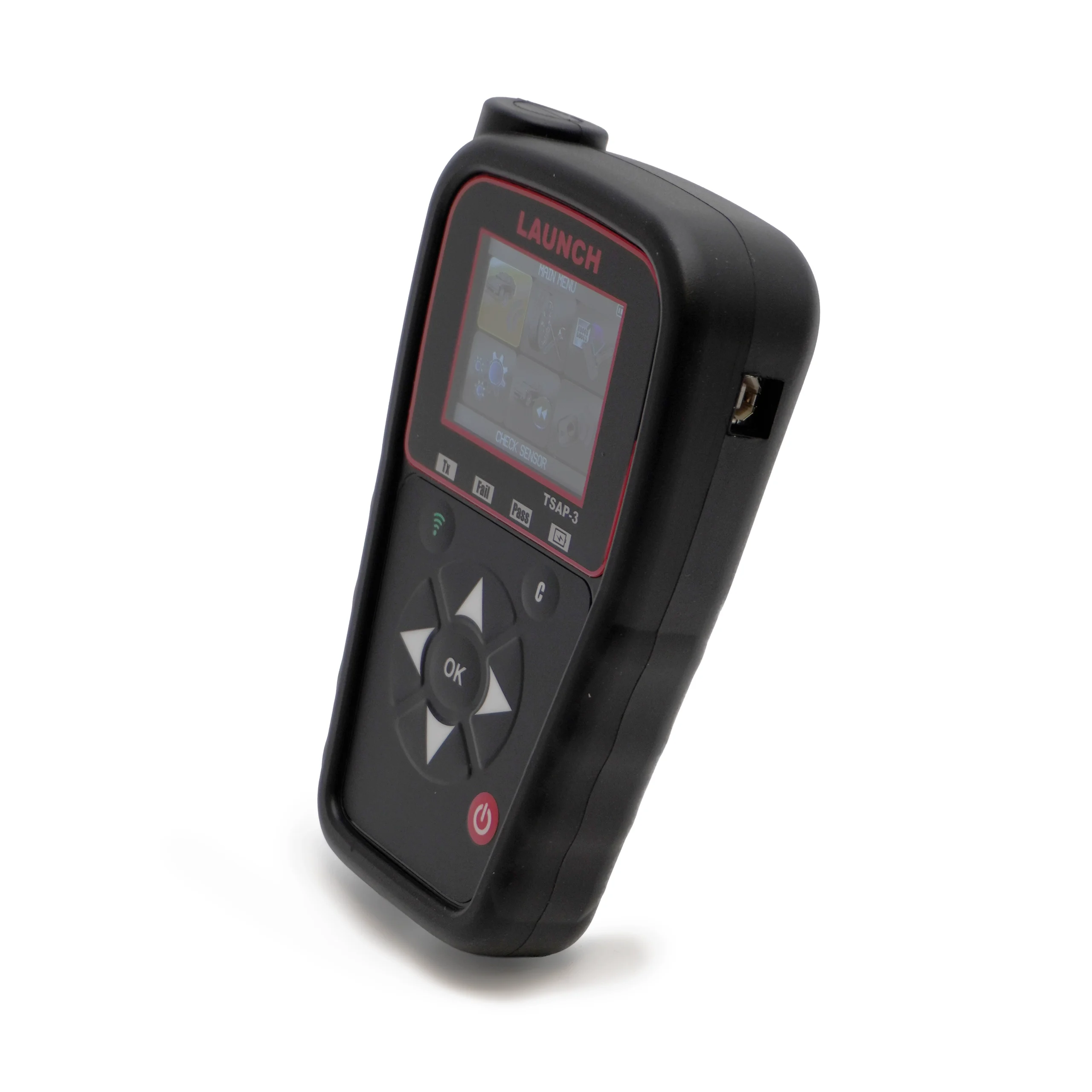

TSAP-3 - Image 4

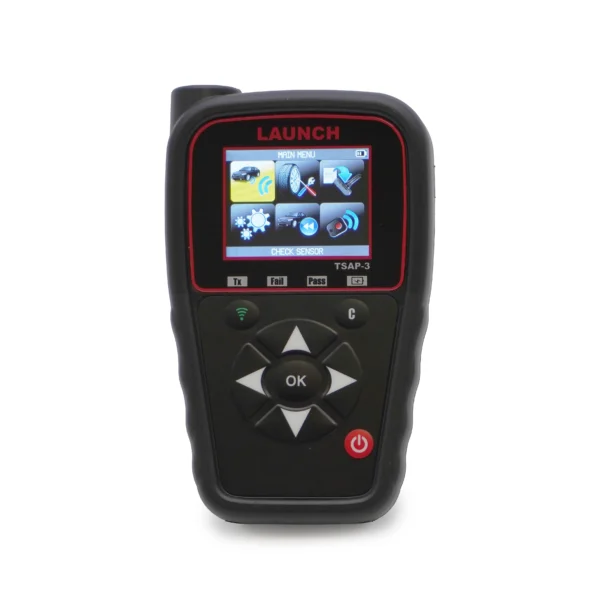

TSAP-3 - Image 5

Are you interested in
an offer or more information?

Write directly to our field support team or find your nearest distributor.

contact us
features

features

specs

specs

inclusions

inclusions

compatibility

compatibility

Downloads

Downloads

Vehicle coverage

Vehicle coverage

The X-431 Throttle v is compatible with a wide range of vehicle makes and models, covering domestic, Asian and European brands.

13.6 inch screen

13.6 inch screen

The X-431 Throttle V’s 13.6 inch screen allows for even better visibility, user-friendliness, and the freedom to compare values and diagnose complex issues more efficiently.

adas compatibility

adas compatibility

The X-431 Throttle V has an integrated ADAS software which offers the possibility to calibrate chassis and assistance systems on the vehicle.

software updates

software updates

Every customer is free to decide whether and when the next update should be carried out.

waterproof

waterproof

The X-431 Throttle V is IP65 waterproof and dustproof which gives the freedom to work in real-world conditions without worrying about damage.

hd diagnosis

hd diagnosis (Optional)

If required, the X-431 Throttle V can be extended with a truck software. For this purpose, the… is required, which can also be purchased separately

specs
Version

Version 7.2

Processor

8 Core /2.0GHz

Ram

4GB

Slot

Card slot up to 64G

Size

10.1 Inches,
1920*1200, IPS

Dimension

2560 x 1600

Battery

9360mAh

(2.4 + 5GHz),

(2.4 + 5GHz)

package contents

  • Throttle V Diagnostic Tablet
  • SmartLink V3.0 Diagnostic Connector
  • OBDII Connector
  • Diagnostic Cable (DB15 to HD15)
  • Gigabit Network Cable (50ft/15m)
  • USB Cable (Type A to B)
  • USB Cable (Type A to Type C)
  • Power Adapter (US)
  • EU Power Cable
  • AU Power Cable
  • UK Power Cable
  • Mini HDMI Cable
  • Activation Code
  • Quick Start Guide

product compatibility

adas

X-431 ADAS PRO PLUS

X-431 ADAS MOBILE PLUS

X-431 ADAS HD

RADAR 3-IN-1

HEAVY DUTY SOLUTIONS

HD ADD-ON MODULE

battery performance

bST360

WHEEL SERVICE TOOLS

X-613 ADVANCED WHEEL ALIGNER

SPECIALITY TOOLS

X-PROG 3

VSP600

VSP828

02-24 CHANNEL SCOPEBOX

S2-2 SENSORBOX

EM101N

TREADMASTER

POWERSPORT CONNECTORS & SOFTWARE

ev

eG100

EV & BATTERY PACK DIAGNOSIS ADD-ON KIT

download user manual download software update

features

features

specs

specs

inclusions

inclusions

Brand Coverage

Wide Sensor Programming

Supports 20+ aftermarket sensor brands.

Display Data

Full TPMS Sensor Data

Displays pressure, temperature, and battery status.

Dual Functionality

Motorcycle & Dually Support

Compatible with motorcycles and dual rear wheel vehicles.

Frequency

Dual Frequency Activation

Works with 315/433 MHz sensors.

Keyfob Testing

Keyfob Testing

Diagnose and verify remote key signal and battery strength

Lookup

Sensor Part Lookup

Finds TPMS sensor replacement part numbers.

OBD Power Range

Comprehensive Relearn Functions

Perform 200+ manual and OBD relearns.

Software Update Type

Wi-Fi Updates

Stay up to date wirelessly.

specs
Battery Life

Battery Life

Approximately 300 activations per full charge

Battery Types

Battery Types

Rechargable Li-Po, 3.000 mAh

Case Material

Case Material

High Impact ABS

Product Dimension

Product Dimensions

6.850 in x 3.818 in x 1.417 in

Product Weight

Product Weight

0.617 lb

Response Frequency

Response Frequency

315/433 MHz

Screen Size

Screen Size

2.8″ Display

Working Temperature

Working Temperature

-4°F to 131°F

package contents

  • TSAP-3 TPMS Tool
  • OBDII Male to Female Cable
  • USB2.0 Type A to Type B Cable
  • AC Adapter
  • Hard Plastic Storage Case
  • Quick Start Guide
